Extendable TV Wall Mount, attaches to KEBLOC.   KEBLOC  NOT INCLUDED WITH THIS MOUNT.

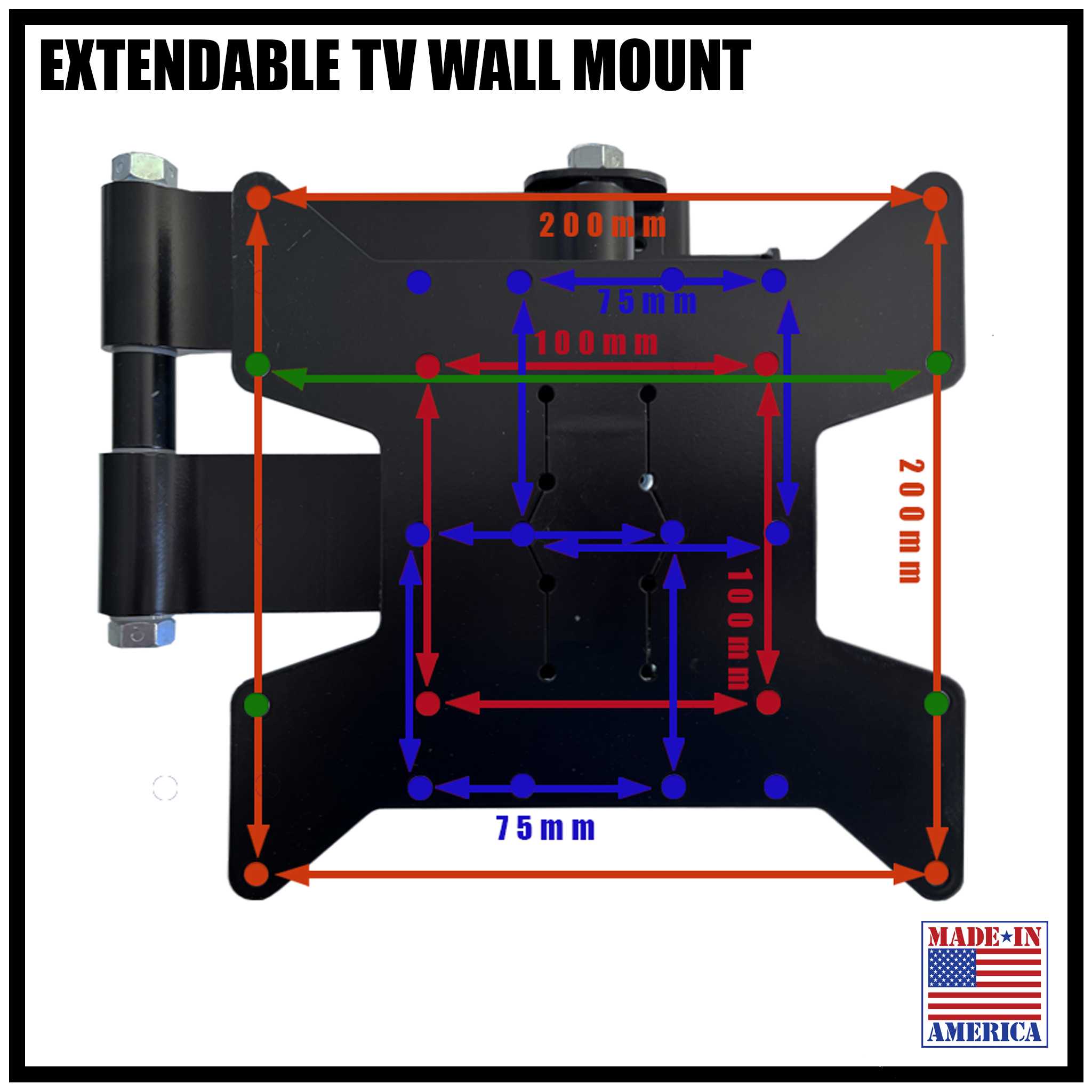

Please keep in mind that the 75mm VESA pattern on this extendable mount will be off-center.  As you can tell from the graphic it can be mounted on the left or right with the 75mm VESA Pattern, also it can be on the bottom or top of the mount. The 100mm x 100mm, 100mm x 200mm, 200mm x 200mm will all be centered on the extendable mount.

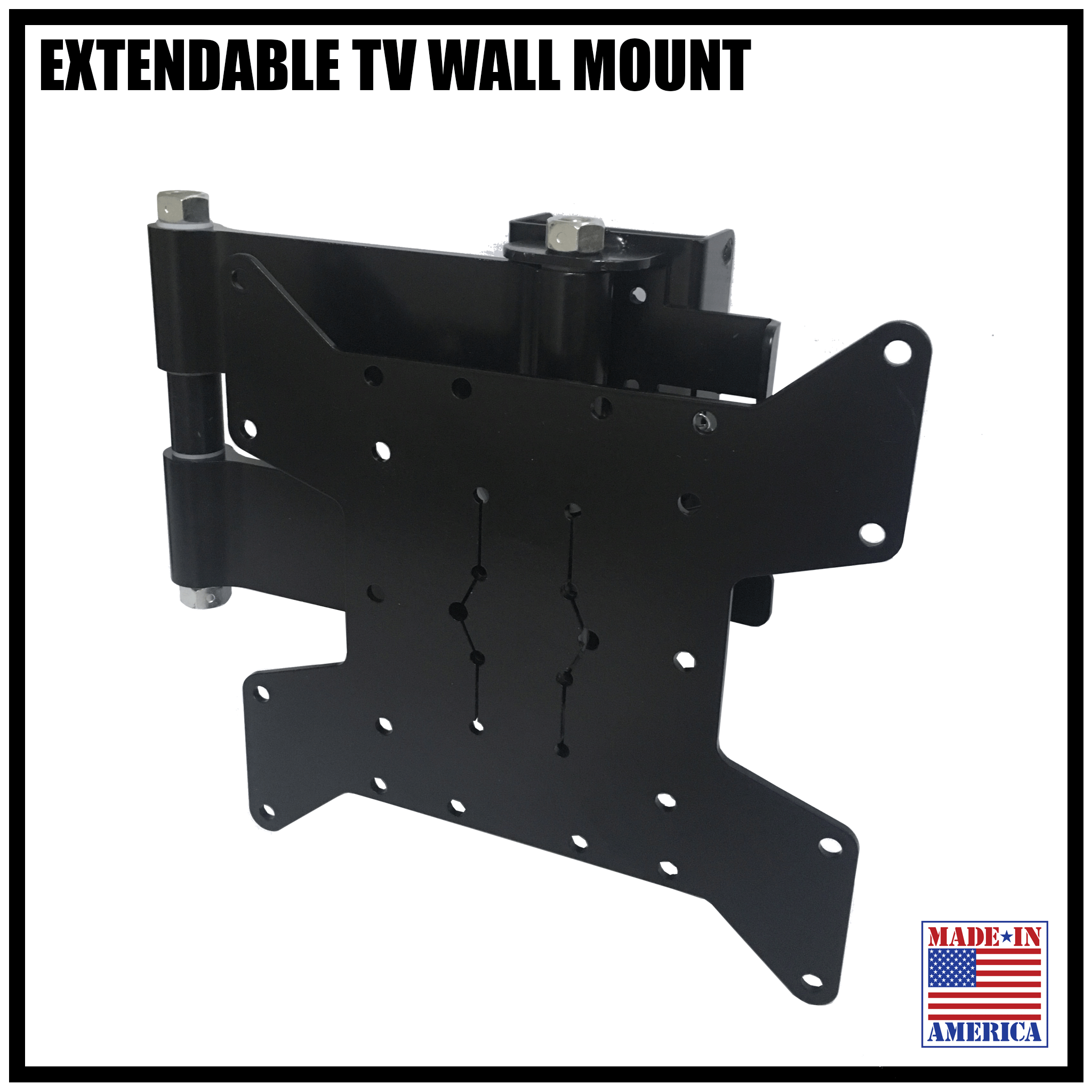

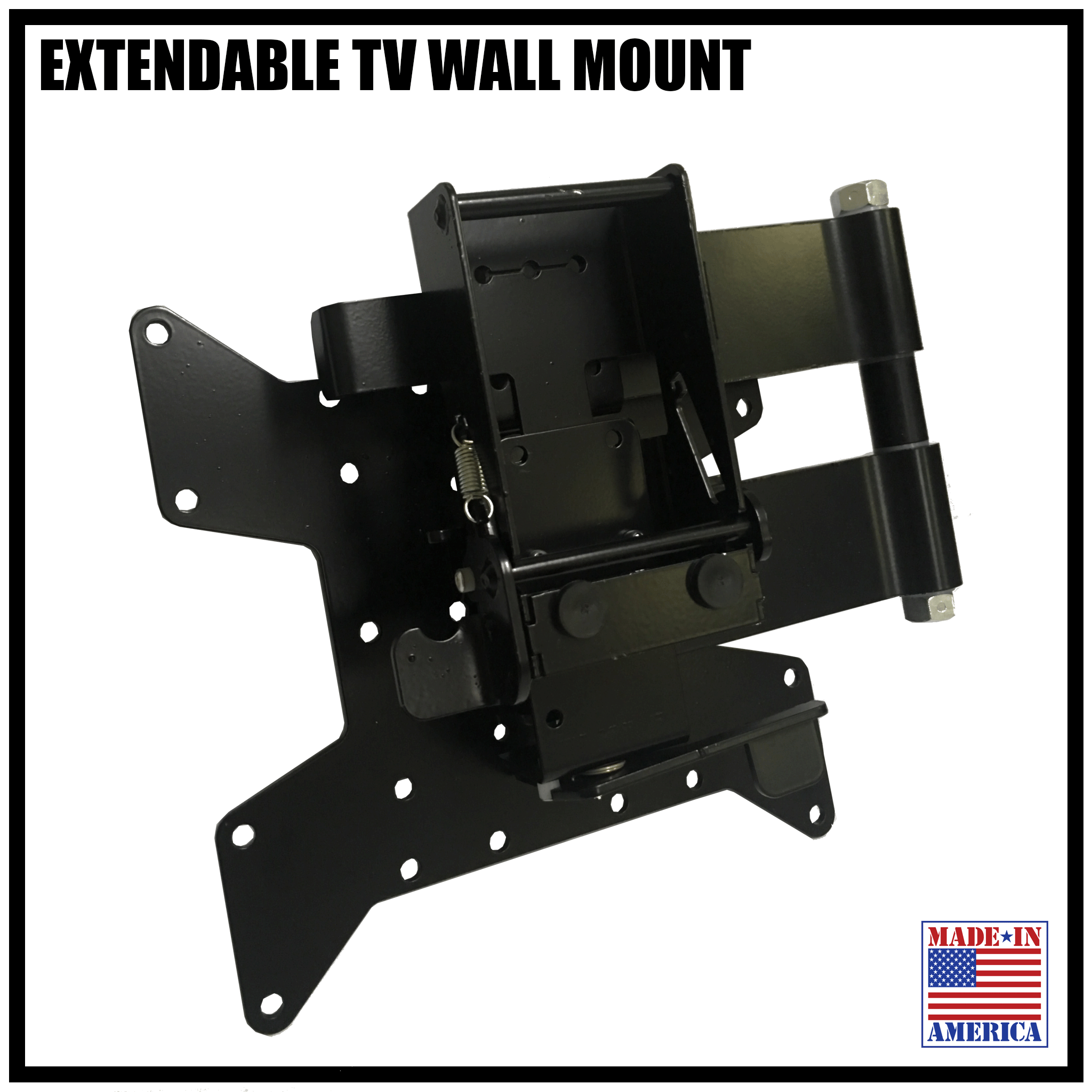

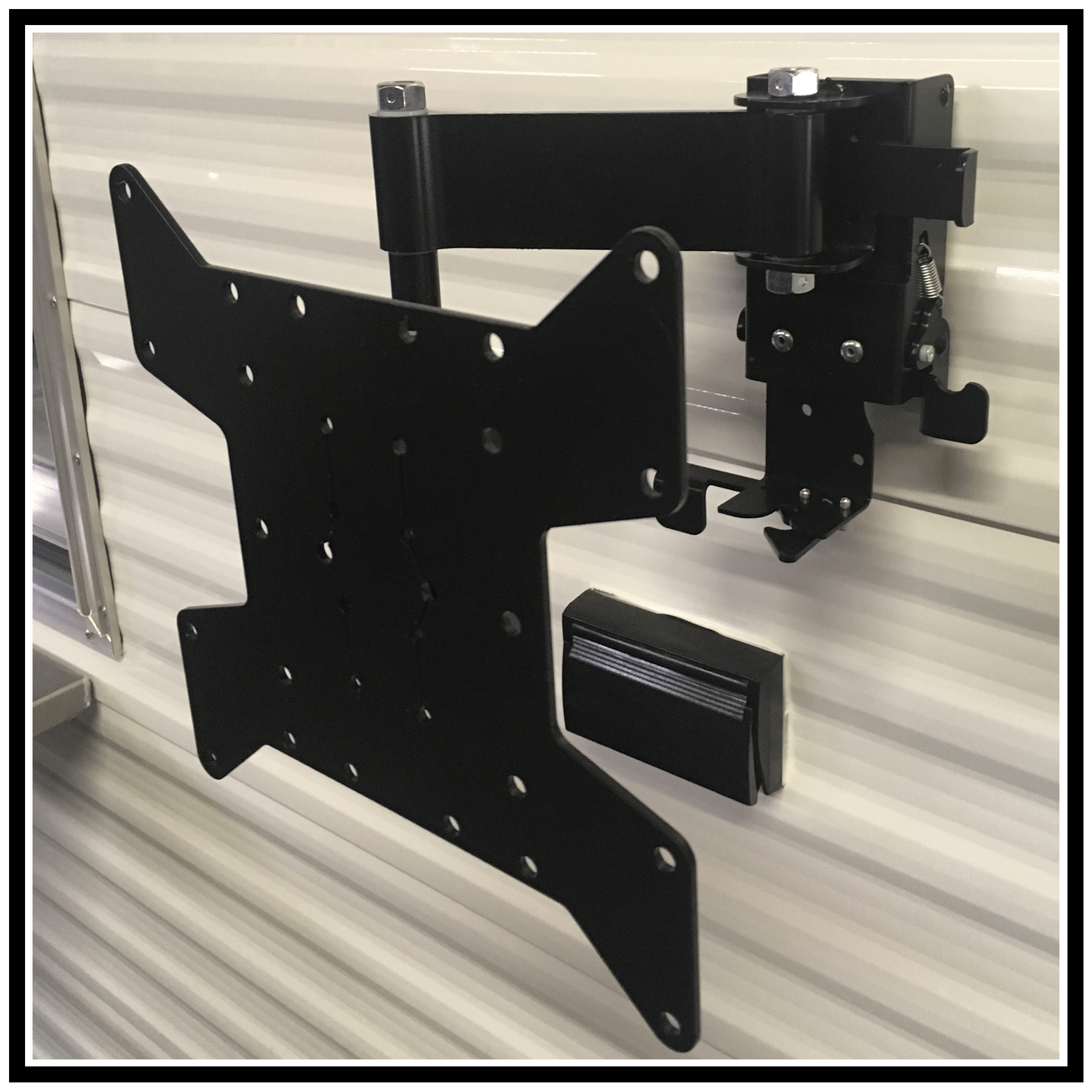

Our Extendable mount (Part #1019214) is a great addition to any situation which you may need to move a tv or swing it out.  This mount will lock to any wall for easy transport and moving and will not move.  These are also being used by many police stations, restaurants, hospitals/Dr. Office's and municipalities.  While the concept is great for a travel trailer or camper, KEBLOC has become an industry standard mount that is made in the USA .

Most TV sizes up to 32" will have a 75mm or 100mm VESA Pattern. TV's from there up to 55" will likely have a 200mm VESA Pattern. This is only a guide as to what we have found and the industry norm, but please verify the VESA with your TV manufacturer before purchasing.

VESA mounting hole patterns:

 75mm x 75mm

100mm x 100mm

200mm x 100mm

200mm x 200mm

Part # 1019214-NK
